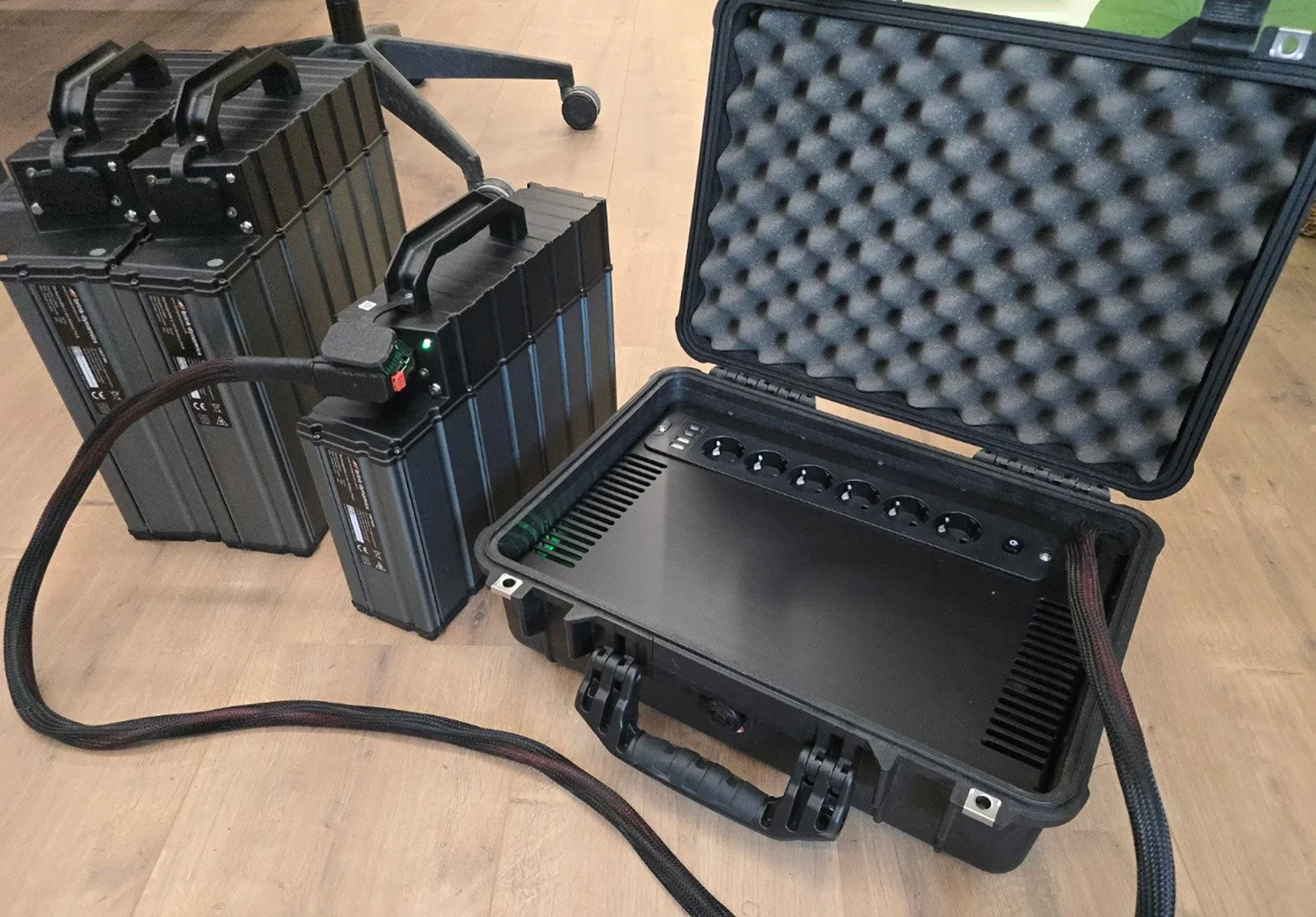

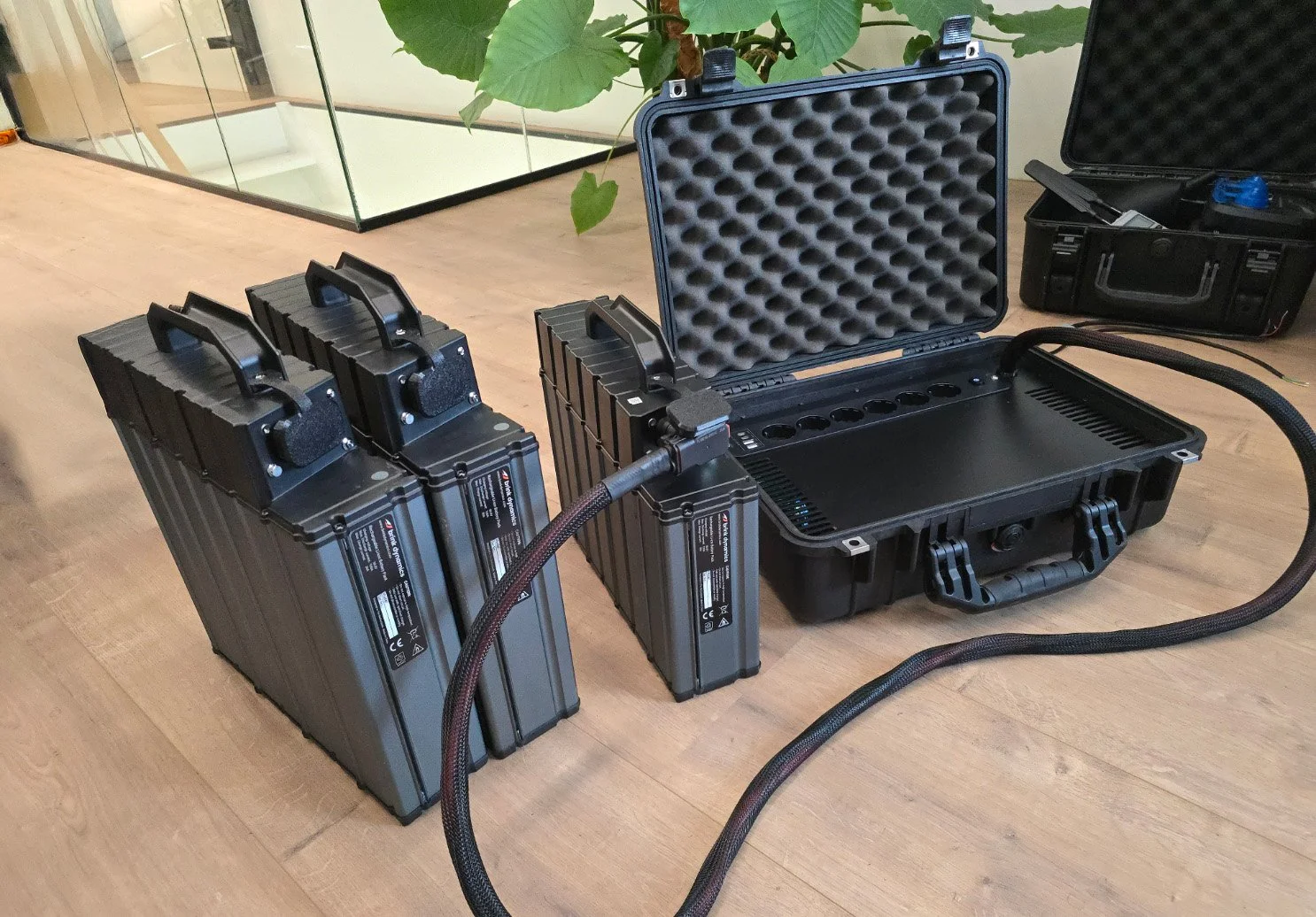

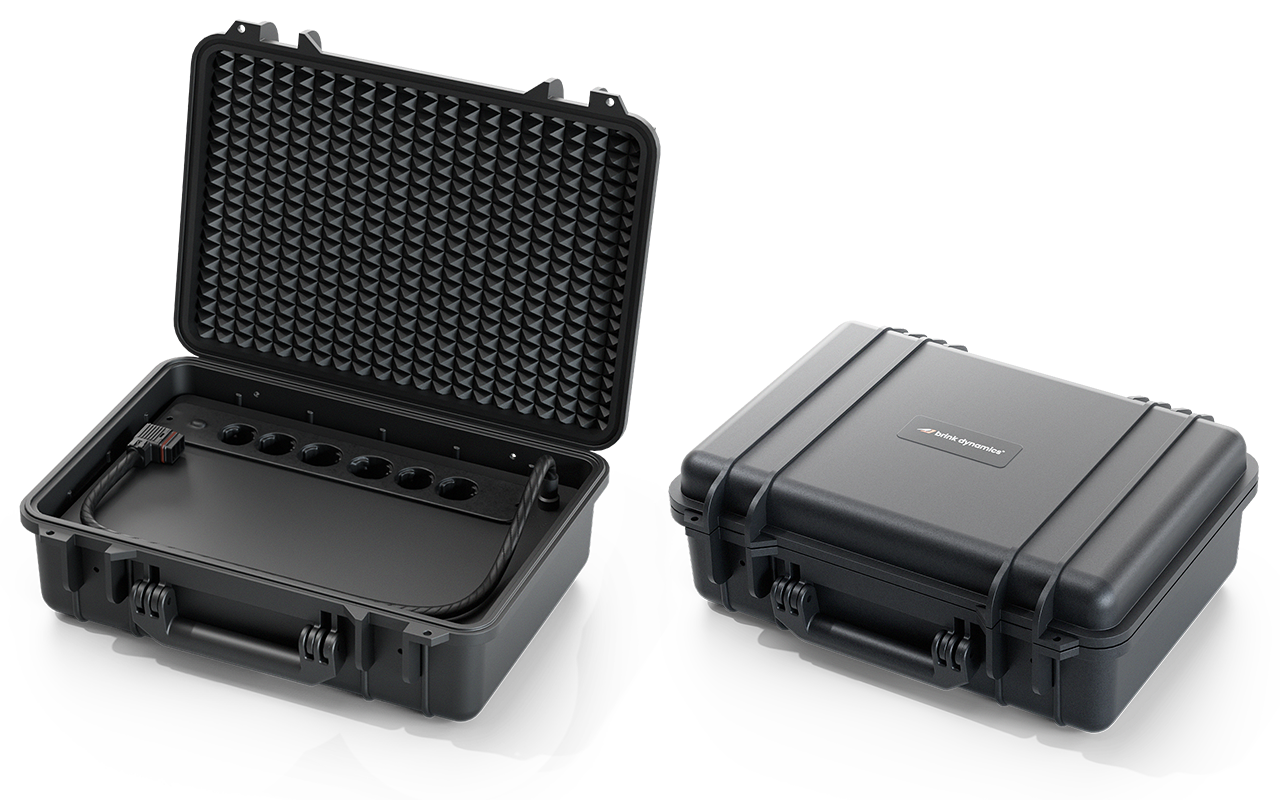

Brink Dynamics Power Station
Very high power dense - Modular -Hot swappable power station.
Batteries can be swapped without power loss
Extremely high power density
High rated power output
Waterproof, durable and robust design
Easy transportable

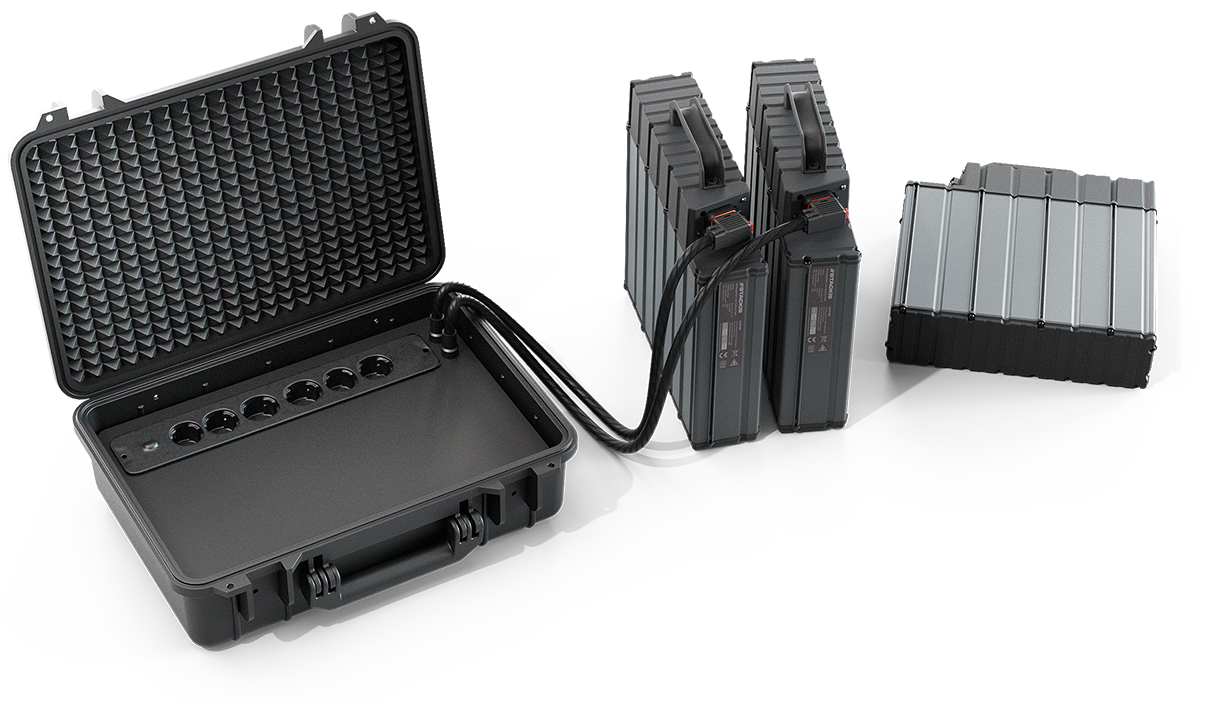

Modular. Efficient. Carry only what you need.
With our flexible modular setup, you carry only the battery packs you need. The inverter and control system stay separate so you only transport real power, not the entire station. Less weight. More flexibility.
| Weight | Approx. 8 kg |
| Dimensions (LxWxH) | 471x357x175mm |
| Operating voltages | 48V, 230V and 5V |
| Max. continuous power output | 3000W |
| Peak power output (<1s) | 6000W |
| Waterproof | Dust and water proof when closed (Peli Case) |
| Output connections |
6x 230V AC Outlet 2x USB-C PD 20W 2x USB-A QC 3.0 18W |
| Battery connection | 2x Fixed external battery connection with single smart hybrid connector |
| Safety features |
- low voltage for safe transportation - short circuit protection - over temperature protection - shock proof |
| Designed and developed in the Netherlands | |
230V - 3000W - Power Station
| Weight | 17 kg |
| Dimensions (LxWxH) | 97 x 351 x 348 mm |
| Capacity based on cell specification | 3210.48 Wh |
| Nominal voltage | 50.4 V |
| Normal continuous discharge current | 60 A |
| Max. continuous discharge current | 100 A ≤ 10min |
| Battery chemical | Lithium-ion |
| Number of cycles | Capacity ≥ 80% after 1,000 cycles - Charge: 0.33C - Discharge: 1C |
| Waterproof | Dust and waterproof |
| Communication Type | CAN protocol |
| Ambient temperature, discharge | -20°C to 60°C (battery heating implemented) |
| BMS | Brink Dynamics - Smart BMS |
| Designed and developed in the Netherlands | |
ST-3200 - 3.2 kWh - Battery Pack
Charging capabilities
The table below shows how many devices/batteries of a certain model can be charged with a single and a 3 battery pack expanded configuration.
|
|
|
|---|---|---|

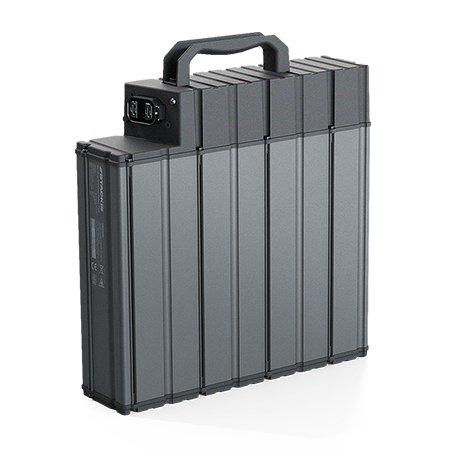

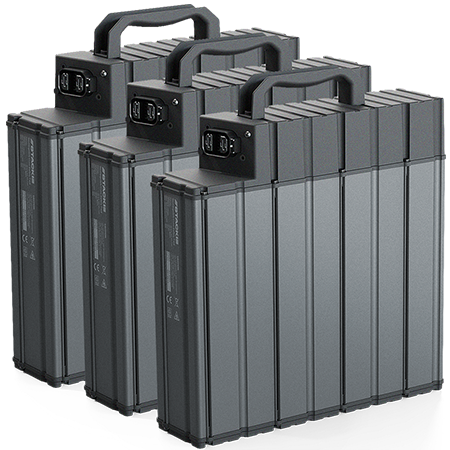

| Device | 1 battery pack | 3 battery packs |

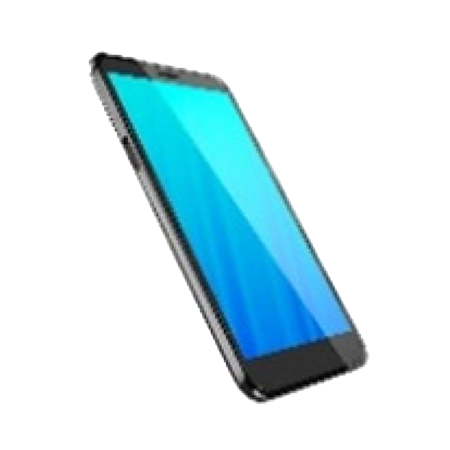

Average smartphone 4500 mAh (3.7V)
|
≈173x | ≈519x |

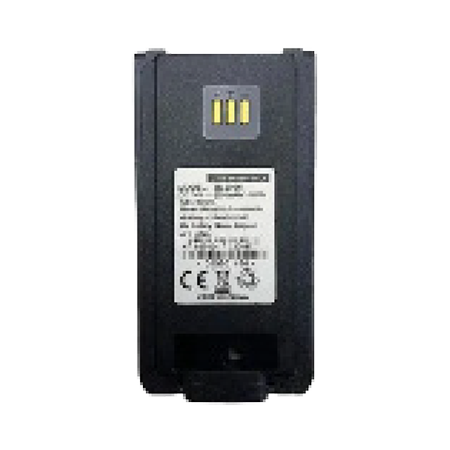

Radio battery 2500 mAh (3.7V)
|
≈312x | ≈936x |

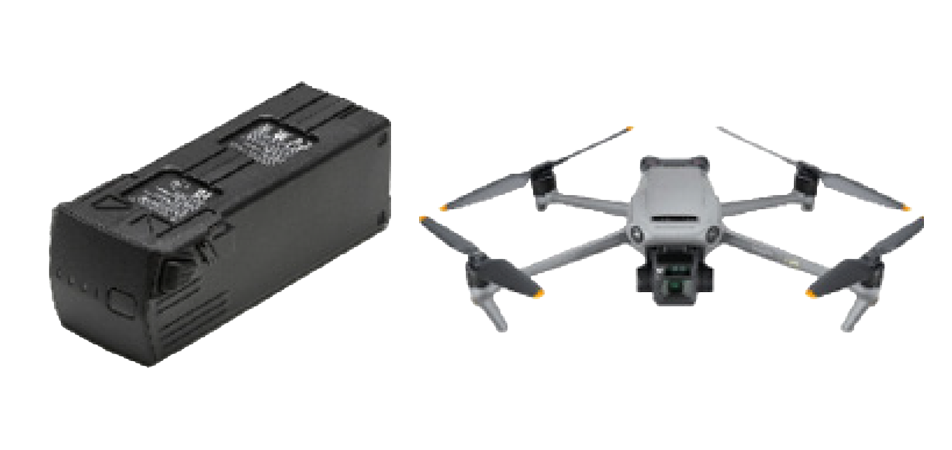

DJI Mavic 3 series battery 5000 mAh (15.4V)
|
≈41x | ≈123x |

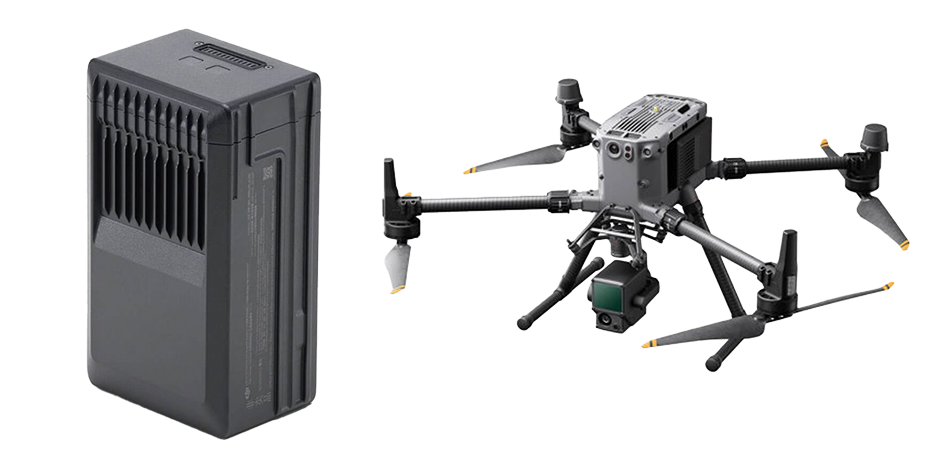

DJI Matrice 350 series battery 5880 mAh (44,76 V)
|
≈10x | ≈30x |

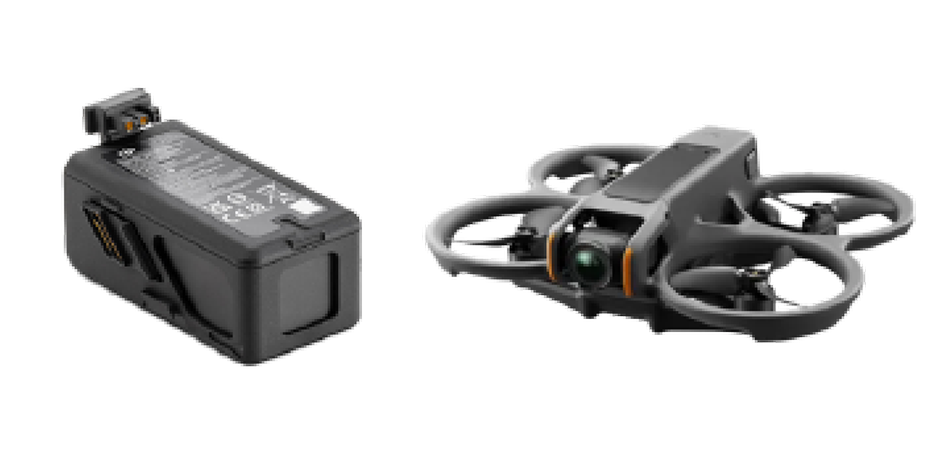

DJI Avata battery 2420 mAh (14.76V)
|
≈81x | ≈243x |

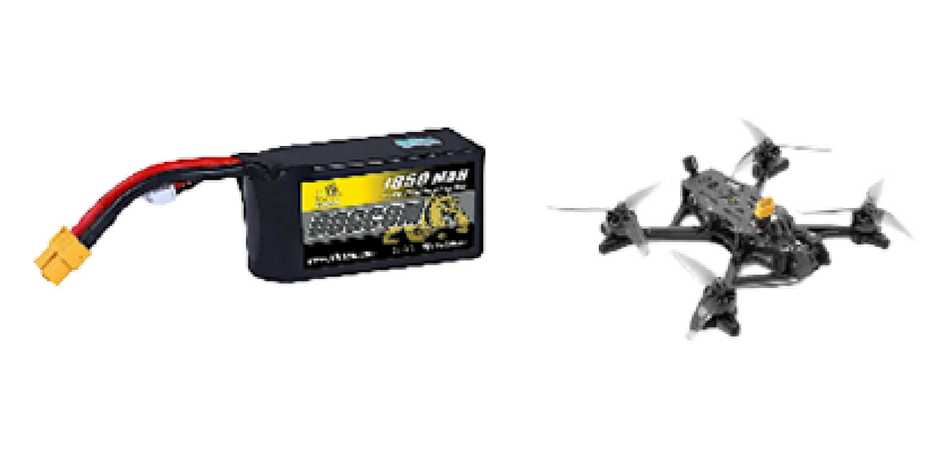

Average 4S 1850 mAh (14.8V) drone battery
|
≈97x | ≈291x |
Calculations are based on 90% of the actual capacity of the device batteries, resulting in a more accurate calculation.
