Brink Dynamics Battery packs

Two large industrial lithium-ion battery packs with handles and power ports.

Very high power dense - waterproof battery packs

Modular. Efficient. Carry only what you need.

The battery packs are designed as independent modules. You deploy only the number of packs required for the mission or task.

Power electronics, inverters and control systems remain separate, reducing carried weight. This keeps logistics simple and improves flexibility in the field

Two soldiers in camouflage uniform and backpacks walking on a grassy trail through a field with trees in the background on a sunny day.

Each battery pack is housed in a rugged, waterproof enclosure. The system is built to withstand transport, outdoor use and continuous operation.

Battery heating and protection systems ensure reliable performance across a wide temperature range.

Designed to keep delivering power when conditions are far from ideal.

Robust, durable and waterproof

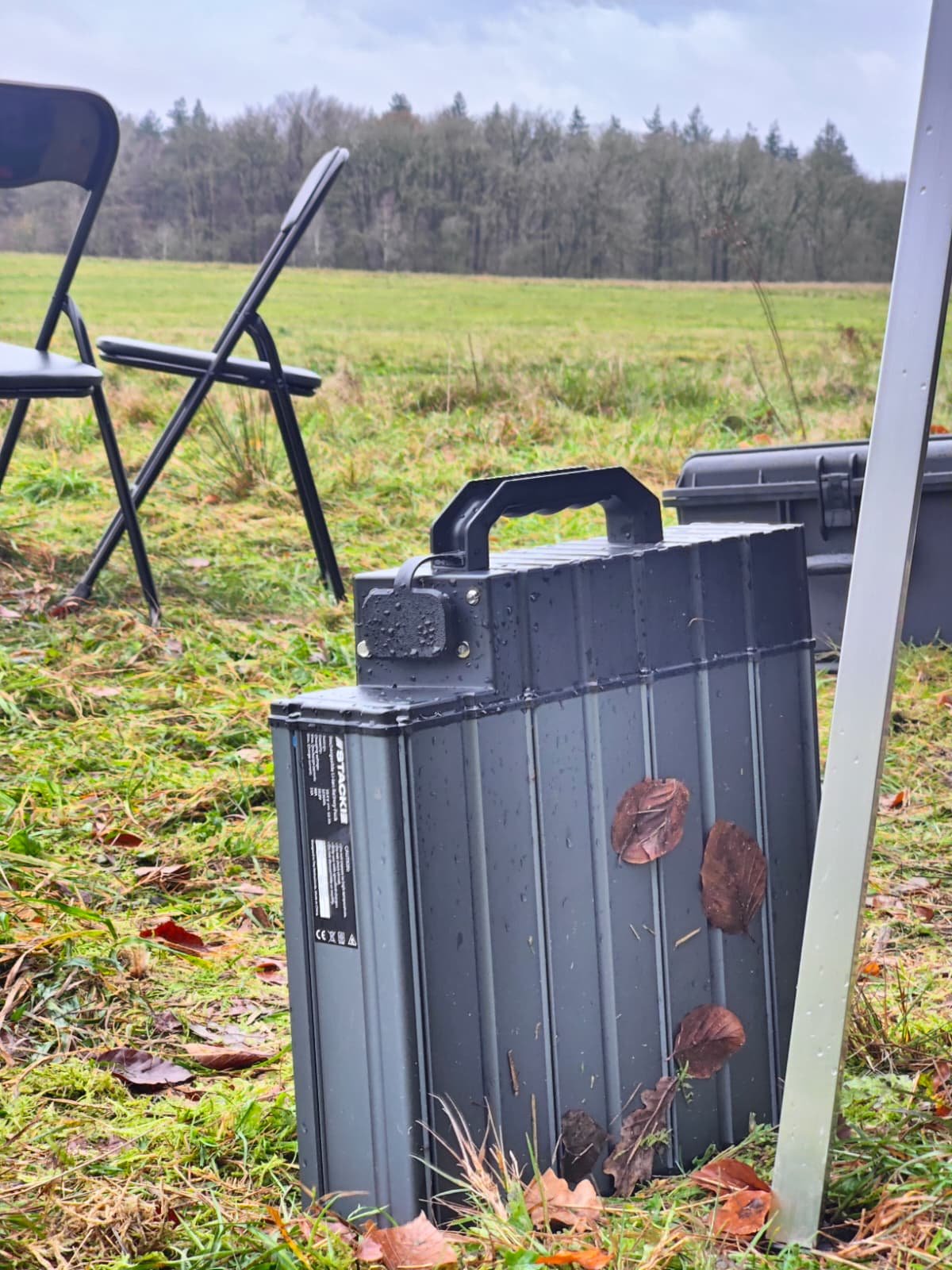

A black portable battery pack with leaves on its surface, placed outdoors on grass, with two folding chairs and a bag in the background, and a forested area with trees in the distance.

    General specifications

            Weight
            12 kg

            Dimensions (LxWxH)
            97 x 351 x 270 mm

            Capacity based on cell specification
            2222.64 Wh

            Nominal voltage
            50.4 V

            Normal continuous discharge current
            60 A

            Max. continuous discharge current
            100 A ≤ 5min

            Battery chemical
            Lithium-ion

            Number of cycles
            Capacity ≥ 80% after 1,000 cycles
- Charge: 0.33C
- Discharge: 1C

            Waterproof
            Dust and waterproof

            Communication Type
            CAN protocol

            Ambient temperature, discharge
            -20°C to 60°C (battery heating implemented)

            BMS
            Brink Dynamics - Smart BMS

            Designed and developed in the Netherlands

A stack of six large, gray, rectangular lithium-ion battery packs with handles on top and power connection ports on the side, likely used for industrial or electric vehicle applications.

ST-2200 - 2.2 kWh - Battery Pack

    General specifications

            Weight
            17 kg

            Dimensions (LxWxH)
            97 x 351 x 348 mm

            Capacity based on cell specification
            3210.48 Wh

            Nominal voltage
            50.4 V

            Normal continuous discharge current
            60 A

            Max. continuous discharge current
            100 A ≤ 10min

            Battery chemical
            Lithium-ion

            Number of cycles
            Capacity ≥ 80% after 1,000 cycles
- Charge: 0.33C
- Discharge: 1C

            Waterproof
            Dust and waterproof

            Communication Type
            CAN protocol

            Ambient temperature, discharge
            -20°C to 60°C (battery heating implemented)

            BMS
            Brink Dynamics - Smart BMS

            Designed and developed in the Netherlands

A large, gray, modular, portable power battery with a handle on top.

ST-3200 - 3.2 kWh - Battery Pack

Charging capabilities

The table below shows how many devices/batteries of a certain model can be charged with a single and a 3 ST-3200 battery pack expanded configuration.


Device	1 battery pack	3 battery packs
Average smartphone 4500 mAh (3.7V)	≈173x	≈519x
Radio battery 2500 mAh (3.7V)	≈312x	≈936x
DJI Mavic 3 series battery 5000 mAh (15.4V)	≈41x	≈123x
DJI Matrice 350 series battery 5880 mAh (44,76 V)	≈10x	≈30x
DJI Avata battery 2420 mAh (14.76V)	≈81x	≈243x
Average 4S 1850 mAh (14.8V) drone battery	≈97x	≈291x
